## Introduction
Connect IM bots to DeepSeek Harness by scanning a QR code, using an App Manifest, or entering existing bot credentials, and let the local Harness connect outward to a public AI Office. One plugin and one settings entry manage nine multi-bot IM channels and the AI Office Connector.
## Interface
## Built-in channels
| Channel | Setup | Messaging and replies |
| --- | --- | --- |
| Feishu | Create a bot by QR code, or bind one with App ID + App Secret | Persistent connection for incoming messages; streaming cards show thinking, tool progress, and replies |
| WeChat | Scan a QR code to bind a WeChat bot | Tencent iLink long polling; shows a typing indicator while Harness works, then sends the final reply in 1,800-character chunks |
| DingTalk | Create a bot by QR code, or bind one with Client ID + Client Secret | DingTalk Stream connection; streaming replies through AI Cards |
| WeCom | Create an intelligent bot by QR code, or bind one with Bot ID + Secret | Official WebSocket connection; native thinking state, tool progress, and streaming replies |
| QQ | Create a bot with mobile QQ QR scanning, or bind one with AppID + AppSecret | WebSocket connection; private chats show typing and receive one Markdown reply, while mentioned group chats receive only the final answer |
| Slack | Create an app from the bundled App Manifest, then enter a Bot Token (`xoxb-`) and App Token (`xapp-`) | Socket Mode connection; direct DM replies, mention-only channel replies, and preferred native streaming API |
| Telegram | Enter a Bot Token generated by @BotFather | Bot API long polling; DMs work by default and groups respond to mentions or replies, while each bot can optionally enable a private-DM allowlist; private chats stream through a Rich Message Draft and persist one rich final, groups and Topics finalize their placeholder in place, and unsupported Rich delivery falls back to ordinary text |
| Discord | Enter a Bot Token generated in the Developer Portal | Gateway v10 connection; direct DM replies; the first mention in a server text or announcement channel creates a native Thread, where follow-up messages no longer need to mention the bot; replies stream through message edits |
| WhatsApp | Scan a QR code with mobile WhatsApp to link a device | WhatsApp Web connection; self-chat only by default, with optional selected-contact and open-response modes; read receipt and typing indicator followed by the final answer |
Other IM platforms can be added through the same channel-adapter structure.
All nine built-in channels can send JPEG, PNG, and WebP images, plus GIFs sent as image files, with optional captions to Harness. Each image is limited to 5 MB, and images in one message are limited to 20 MB in total. Downloading images or files from Feishu user messages requires the `im:message:readonly` tenant scope, shown on the confirmation page as **Read direct and group messages**; Feishu currently offers no narrower image-only scope for that download endpoint. Apps created through the built-in QR flow request it by default; for existing or manually connected apps, click **Complete permissions** on the IM Bot settings page and scan the QR code to incrementally add that scope, `im:resource` for uploading bot-sent images or files, `application:app_slash_command:read` / `write` for the native command panel, and the card callback.
### Result-file and image delivery
All nine built-in channels can return any file readable by Harness as a native channel attachment. Existing files and files created by the current task can both be sent directly. The capability is available to every connected bot by default, with no switch or per-bot allowlist, while existing text, image, streaming, command, and Session behavior remains unchanged.
After the model calls the file-return tool, the plugin hands the specified file to the channel's native API. Images prefer native image messages; if a channel does not support or definitively rejects image delivery, the plugin falls back to a file attachment, while an uncertain result never triggers a duplicate fallback. The plugin adds no rules for file origin, creation time, workspace boundary, extension, content, count, size, or lifetime; the file only needs to exist and be readable. A channel may still reject delivery according to its own permissions, quota, file capability, or account tier, and the plugin reports that provider result.
| Channel | Platform requirements |
| --- | --- |
| WeChat | The current binding protocol and conversation must support native file messages; the WeChat API response determines the actual range. |
| Feishu | Feishu's file-upload API requires a non-empty file no larger than the platform's 30 MB limit. The app needs the `im:resource` tenant scope (**Read and upload images or other files**). Apps created through the built-in QR flow request it by default; existing or manually connected apps can add it incrementally through **Complete permissions** or `/repair` in a direct chat, followed by any approval Feishu requires. The Feishu developer console currently has no separate `im:resource:upload` scope. |
| DingTalk | The app needs `qyapi_base`, and the bot must support file messages. The current OAPI and bot capability determine the accepted formats and sizes. |
| WeCom | The app needs media-upload and file-message capability; the WeCom API response determines the actual range. |
| QQ | The bot needs file-message capability and remains subject to QQ's daily upload quota; the bot reports when the quota is exhausted. |
| Slack | The Bot Token needs `files:read`, `files:write`, and `reactions:write`; the Workspace's current policy determines the actual file-size limit. After changing scopes, re-authorize/reinstall the App and reconnect the bot. |
| Telegram | The bot must be allowed to send documents in the current chat; the Bot API response determines the actual range. |
| Discord | Enable **Message Content Intent** in the Developer Portal. The bot needs **Send Messages**, **Create Public Threads**, **Send Messages in Threads**, and **Read Message History**; result-file delivery also requires **Attach Files**. The current account and server capability determine the actual attachment allowance. |
| WhatsApp | The linked session must support Document Messages; the WhatsApp/Baileys response determines the actual range. |
## AI Office Connector
The **AI Office** page lets the local Harness connect outward to a public Office. The machine needs no public IP, forwarded port, or WebSocket server. The Device Token is written only to the Harness credential provider; the ordinary config file contains only the device ID, Office origin, workspace aliases, and instruction-preset aliases. Office selects aliases and never receives local absolute paths.
The current protocol is `office-harness.v1`. The connector authenticates and advertises capabilities with `POST /api/harness/connector/heartbeat`, then opens the downstream event plane with `GET /api/harness/connector/stream` over SSE. The settings page derives every fixed hook from the Office Base URL and reconnects with backoff after a disconnect.
A `job.available` event makes the local connector fetch the payload, validate Workspace/Preset aliases, claim a 90-second lease, and renew it every 30 seconds. It creates an isolated Harness Session, reports safe status/tool/text progress, and writes a terminal result exactly once. Tool approvals and follow-up questions surface in Office; approve, reject, and text answers return over SSE to the original Session. Heartbeats and leases recover from dropped connections.
A successful heartbeat response must be JSON: `{"ok":true,"protocolVersion":"office-harness.v1"}`. This makes a successful connection test proof of a compatible Office Connector instead of any URL that happens to return 200.
## Installation
Install the published stable release from npm (recommended):
```sh
dsh plugin --profile web add -w @xmanrui/dsh-im
```
Restart `dsh web`, refresh the browser, then open **Settings → IM Bot**. The top-level IM Bot entry uses `order: 21` to follow **Agent Presets**, and the Plugins page no longer retains the old entry. Upgrading preserves existing bots, credentials, workspaces, Agent Presets, and Session bindings.
Local `dsh web` and DSH Desktop reuse the current Host's internal services by default: legacy Harness releases use `apiProxy`, while current releases automatically use the Typert Gateway plus the Session and Workspace controllers. No Harness address or loopback HTTP connection is required. Desktop's compatibility, extended-window, and advanced modes do not require browser access or LAN access to be enabled. An explicit channel `harnessBaseUrl` is retained only for legacy remote HTTP/WebSocket Harness endpoints; failed internal calls never silently switch to another Host.
To try the latest code before it is published to npm, use the GitHub-source installer instead:
```sh
npx -y github:xmanrui/dsh-im install
```
A GitHub-source installation fetches and builds a Git dependency directly. With pnpm 10 or newer, the profile may first need an `allowBuilds` entry in `pnpm-workspace.yaml`. Most users should prefer the stable npm release.
After installation, follow the built-in instructions on each channel page to scan a QR code or enter credentials. Secrets and Tokens are sent only to the local Harness Host and stored through its protected credential provider; status responses and bot lists never return them.
If this machine must use a forward proxy to reach Feishu, set `HTTPS_PROXY` to a full HTTP proxy URL before starting `dsh web` (for example, `http://proxy:8080`; lowercase `https_proxy` is also supported, with `HTTP_PROXY` accepted as a fallback), then restart the Host after changing it. Feishu registration and credential verification reuse the SDK's proxy-aware HTTP client, while the message WebSocket explicitly uses that proxy; the WebSocket path does not currently read `ALL_PROXY` or `NO_PROXY`.
If this machine cannot reach the Telegram Bot API directly, use Node.js 22.21 or newer and enable Node's environment proxy support before starting `dsh web`:
```sh
NODE_USE_ENV_PROXY=1 \
HTTPS_PROXY=http://proxy:8080 \
HTTP_PROXY=http://proxy:8080 \
NO_PROXY=localhost,127.0.0.1 \
dsh web
```
Use the proxy URL required by your network and restart the Host after changing it. If Telegram Bot Token binding reports that the Bot API cannot be reached, first check the proxy URL, Node.js version, and `NO_PROXY` configuration.
| Default behavior | Description |
| --- | --- |
| Bot workspace | Each bot stores its workspace independently. New bots start with the Host's current working directory, which can later be changed from the bot card. |
| Agent Preset | Each bot can choose an Agent Preset on its settings card. When none is chosen, new Sessions follow the Host's `agent-presets.default`. A channel-level `config.agentPreset` is only the default for later new bots on that channel. Changing the preset never modifies or clears existing Sessions; if the current chat already has a Session, send `/new` and then a regular message to create one with the new selection. |
| Context enhancement | Open settings from a bot card to enable groups and DMs independently. Both switches default to off, including for existing bots after an upgrade. |
### Proactive delivery
All nine IM channels can proactively send text through a stable `botId + targetId` pair. Bot settings support choosing a known conversation or entering a target manually, testing the current route before saving, and copying call parameters. HTTP POST, same-Host plugins, and Connection RPC share the same target configuration and delivery core.
See the [Proactive Delivery Guide](PROACTIVE_DELIVERY.en.md) ([简体中文](PROACTIVE_DELIVERY.md)) for setup steps, native fields for all nine channels, complete call examples, management endpoints, error codes, and troubleshooting.

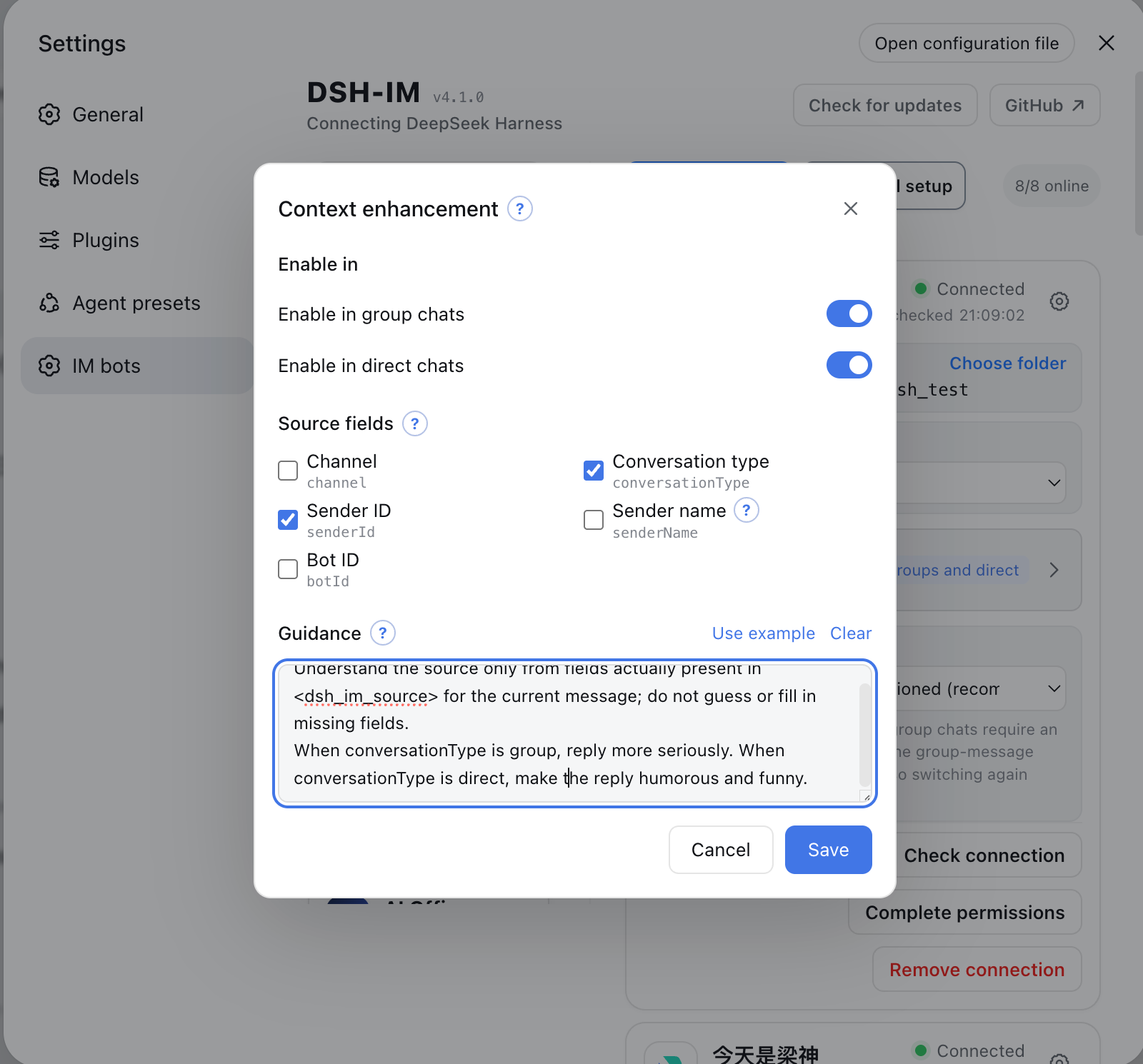

### Context enhancement
[Read the context enhancement guide](docs/context-enhancement.md)
### Access modes
[Read the access modes guide](docs/access-modes.md)
## Checking and installing updates
[Read the update-checking and installation guide](docs/checking-and-installing-updates.md)
## Bot commands
| Command | Description |
| --- | --- |
| `/help` | Show the commands and usage supported by the bot. |
| `/new` | Unbind the current chat so its next ordinary message starts a new Harness Session. |
| `/status` | Check the connection between the current bot and DeepSeek Harness. |
| `/version` | Show the version of the running dsh-im plugin. |
| `/models` | List every currently configured model with a number. |
| `/model` | Show the model and reasoning effort used by the Session bound to this chat. |
| `/model
